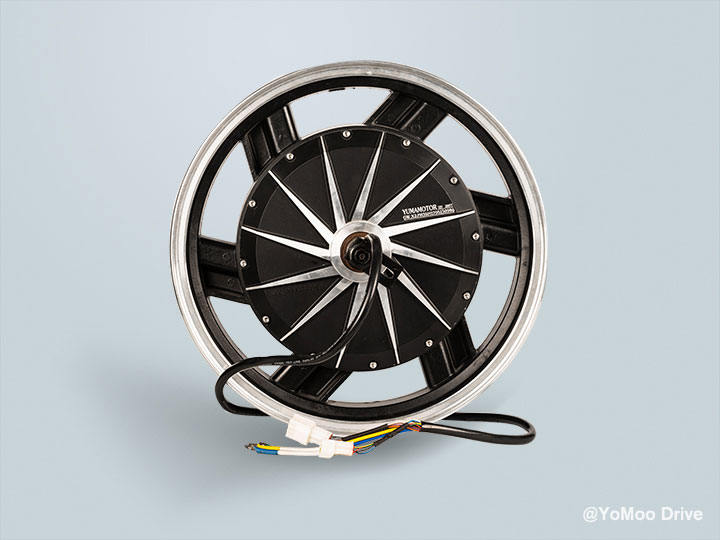

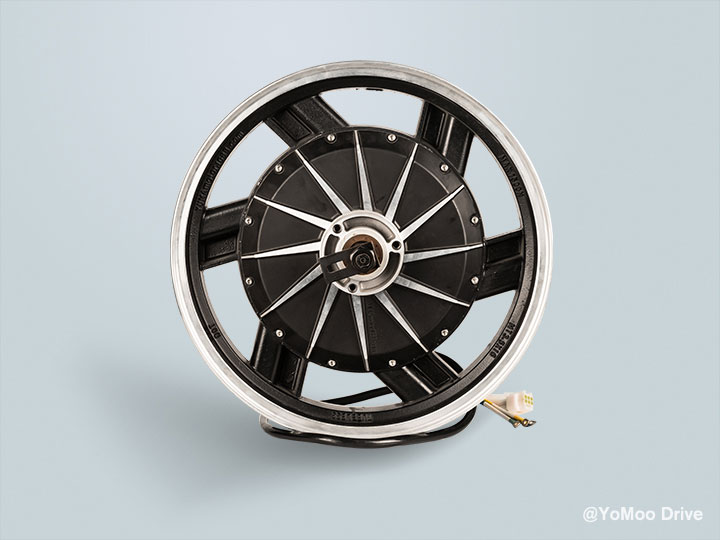

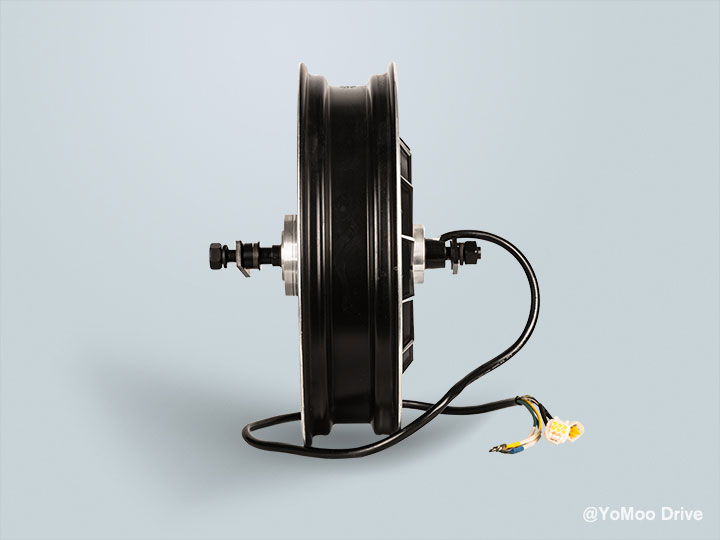

Electric Motorcycle Hub Motor - 16x2.75/3.5inch 260 Motor 1500w-4000w
16x3.5inch electric motorcycle wheel motor was suitable for convert your gasoline motorcycle to electric, it's easy installation, while confirmed your fork distanct is 200mm, and axle flat was fit with or only modify it. Motor power range 1500w-4000w was support max. speed from 60kmh to 90kmh.
Motor Power Range Reference
16inch 1500w wheel hub motor, magnet 30H, max. Speed can be 60kmh
16inch 2000w wheel hub motor, magnet 35H, max. Speed can be 70kmh
16inch 3000w wheel hub motor, magnet 40H, max. Speed can be 75kmh
16inch 3000w V2 wheel hub motor, magnet 40H, max. Speed can be 80kmh
16inch 4000w V2 wheel hub motor, magnet 45H, max. Speed can be 90kmh
Brushed and Brushless DC Motor Differences
Brushed DC motors use an iron core, commutator, and wire coils mounted to the same shaft. These elements are made of metal, which makes them heavy and likely to produce high rotor inertia. High rotor inertia is not desirable for industrial positioning applications. Manufacturers design BLDC motors to reduce rotor inertia by using permanent magnets mounted to the rotor and electronic commutation that replaces mechanical commutation. The electromagnetic windings are part of the fixed stator. A motor’s stator produces a rotating field as it receives energy from semiconductor switching circuits. This interaction causes the rotor to turn.
