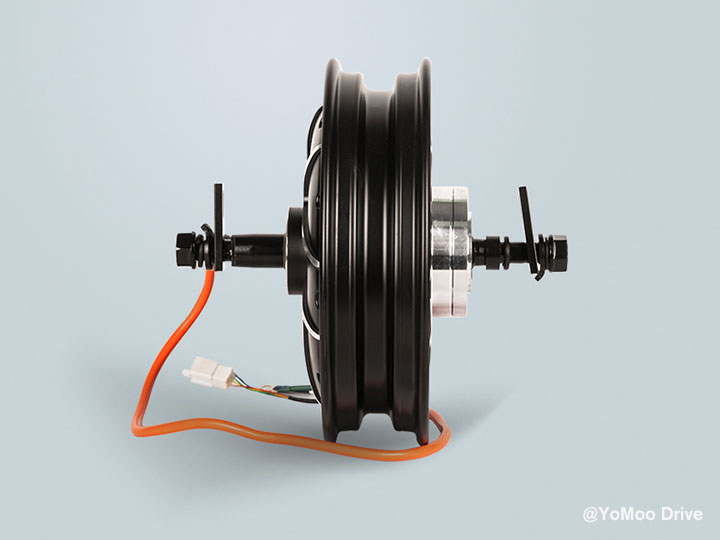

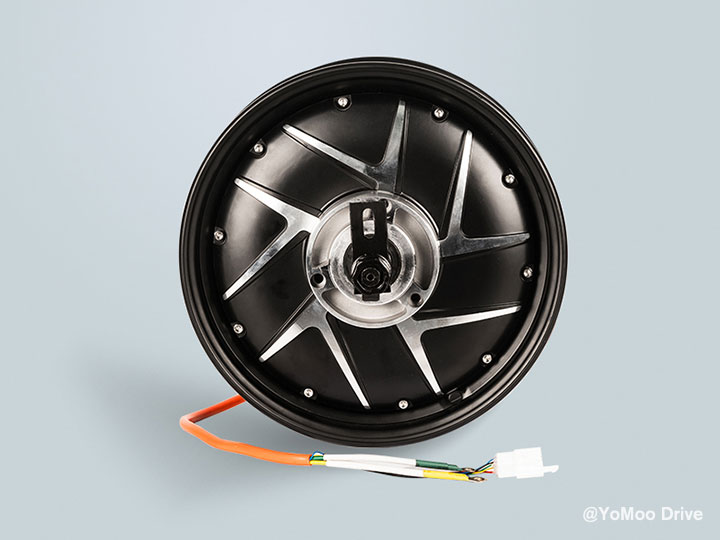

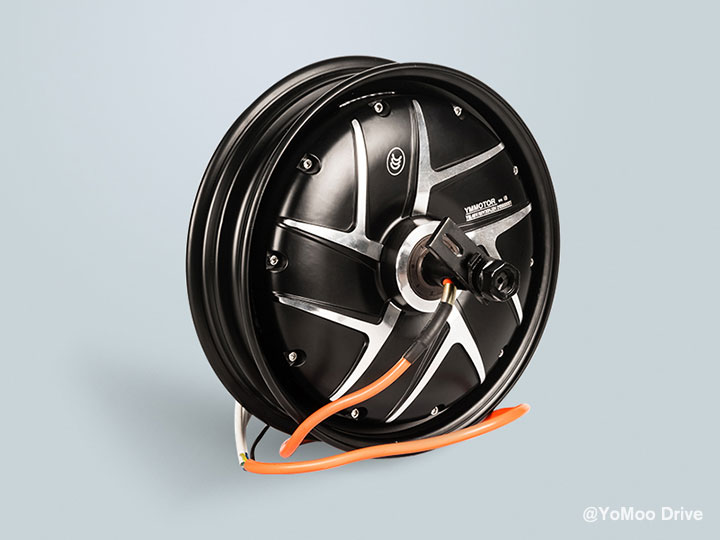

Electric Scooter Hub Motor - 10x2.15inch 213 XF 1000w-3000w
It’s motor designed in Brushless Gearless Hub Motor type for electric scooter, which power range 1000w to 3000w, max. speed 15kmh to 70kmh. The wheel hub motor was easy for installation, and match with almost hall BLDC controllers well. The motor with disc brake design, which can fit with almost of your vehicle. We recommend speed more than 40kmh to choose disc brake which will be better performance on braking. Drop-outs is 200mm, which suitable for almost electric scooter. And tire size 3.00-10, 90/90-10 are matched well for this 10inch hub motor.
Motor Power Range Reference
10inch 1000w wheel hub motor, magnet 27H, max. Speed can be 45kmh
10inch 1200w wheel hub motor, magnet 30H, max. Speed can be 50kmh
10inch 1500w wheel hub motor, magnet 35H, max. Speed can be 55kmh
10inch 2000w wheel hub motor, magnet 40H, max. Speed can be 60kmh
10inch 2500w wheel hub motor, magnet 45H, max. Speed can be 65kmh
10inch 3000w wheel hub motor, magnet 50H, max. Speed can be 70kmh
Brushed and Brushless DC Motor Differences
Brushed DC motors use an iron core, commutator, and wire coils mounted to the same shaft. These elements are made of metal, which makes them heavy and likely to produce high rotor inertia. High rotor inertia is not desirable for industrial positioning applications. Manufacturers design BLDC motors to reduce rotor inertia by using permanent magnets mounted to the rotor and electronic commutation that replaces mechanical commutation. The electromagnetic windings are part of the fixed stator. A motor’s stator produces a rotating field as it receives energy from semiconductor switching circuits. This interaction causes the rotor to turn.
