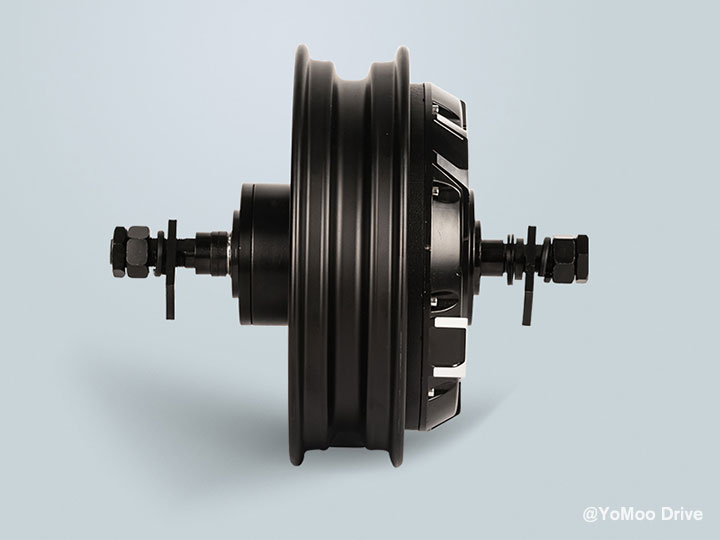

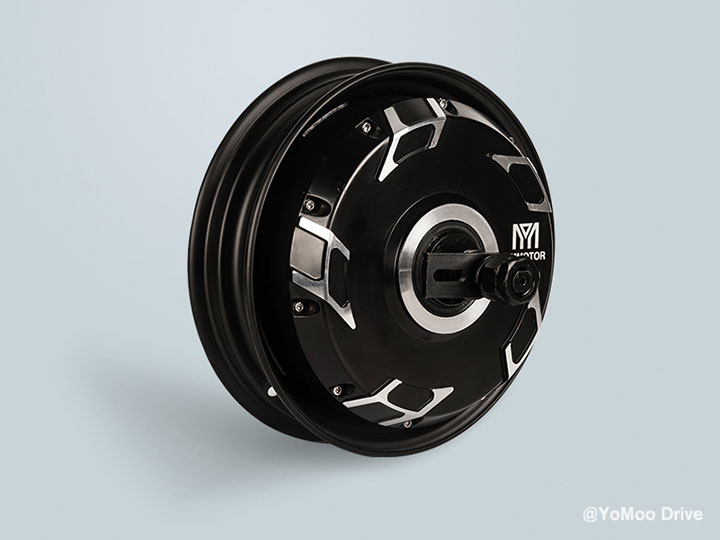

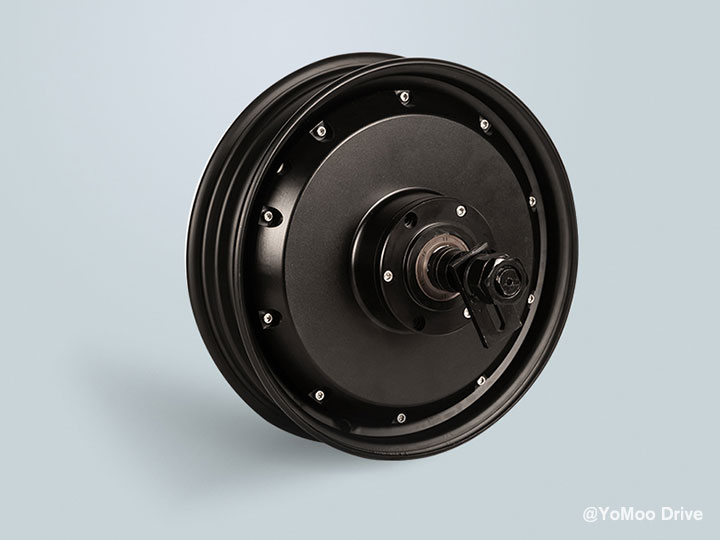

It’s motor designed in Brushless Gearless Hub Motor type for electric scooter, which power range 2000w to 7000w, max. speed 25kmh to 120kmh. The wheel hub motor was easy for installation, and match with almost hall BLDC controllers well. The motor with disc brake design, which can fit with almost of your vehicle. We recommend speed more than 40kmh to choose disc brake which will be better performance on braking. Drop-outs is 200mm, which suitable for almost electric scooter. And tire size 3.00-10, 90/90-10 are matched well for this 10inch hub motor.
10inch 2000w wheel hub motor, magnet 35H, max. Speed can be 75kmh
10inch 3000w wheel hub motor, magnet 45H, max. Speed can be 90kmh
10inch 4000w wheel hub motor, magnet 50H, max. Speed can be 100kmh
10inch 5000w wheel hub motor, magnet 60H, max. Speed can be 110kmh
10inch 7000w wheel hub motor, magnet 70H, max. Speed can be 120kmh
Brushed DC motors use an iron core, commutator, and wire coils mounted to the same shaft. These elements are made of metal, which makes them heavy and likely to produce high rotor inertia. High rotor inertia is not desirable for industrial positioning applications. Manufacturers design BLDC motors to reduce rotor inertia by using permanent magnets mounted to the rotor and electronic commutation that replaces mechanical commutation. The electromagnetic windings are part of the fixed stator. A motor’s stator produces a rotating field as it receives energy from semiconductor switching circuits. This interaction causes the rotor to turn.
