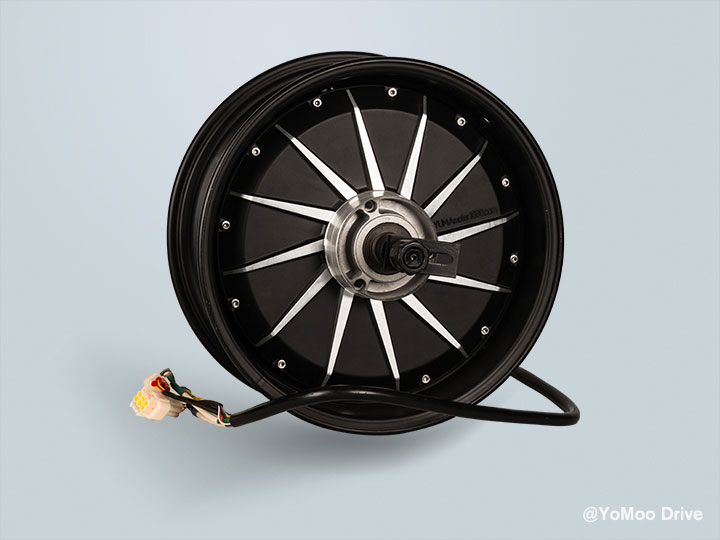

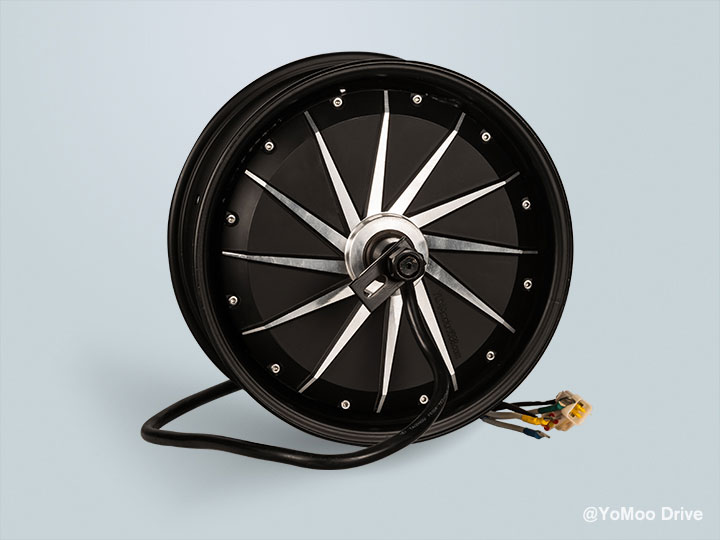

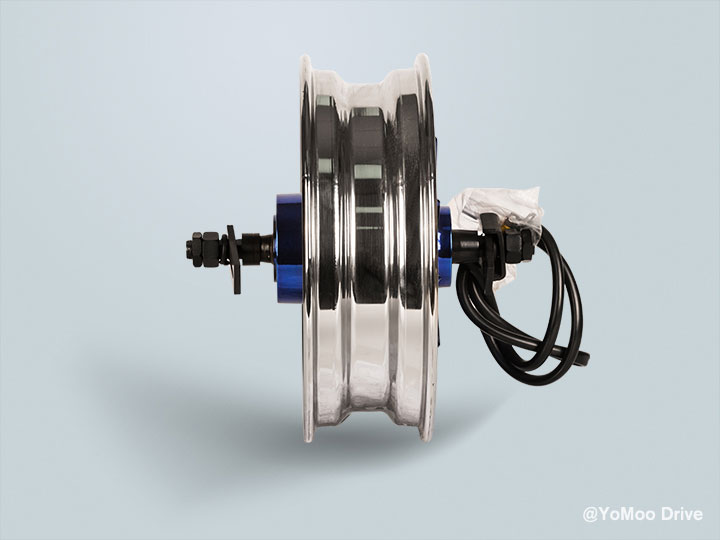

Electric Scooter Hub Motor - 12x2.5/3.5inch 260 XF 1200w-5000w
Today, most electric scooters will have hub motors, which are motors embedded in the wheels. Newer models will tend to have brushless DC motors, as that technology provides some benefits over the older, brushed motors. We designed the 12x2.5/3.5inch hub motor with power 1200w-5000w, max. Speed 25kmh to 100kmh. Drop-outs is 200mm, which suitable for almost electric scooter. And tire size 90/90-12,120/70-12 are matched well for this 12inch hub motor.
Motor Power Range Reference
12inch 1200w wheel hub motor, magnet 27H, max. Speed can be 60kmh
12inch 1500w wheel hub motor, magnet 30H, max. Speed can be 65kmh
12inch 2000w wheel hub motor, magnet 35H, max. Speed can be 70kmh
12inch 3000w wheel hub motor, magnet 40H, max. Speed can be 75kmh
12inch 3000w V2 wheel hub motor, magnet 40H, max. Speed can be 80kmh
12inch 4000w V2 wheel hub motor, magnet 45H, max. Speed can be 90kmh
12inch 5000w V2 wheel hub motor, magnet 50H, max. Speed can be 100kmh
Better heat removal for Brushless DC Motor
BLDC (Brushless DC) motors generally have better heat removal compared to traditional brushed DC motors because of their more efficient design. One reason for this is that BLDC motors have a lower resistance, which means that less electrical energy is converted into heat. Additionally, BLDC motors have a more compact design with a higher power-to-weight ratio which allows for better heat dissipation.
